Swanstrom - Rectangle Shape Disc Cutter

SwanSwanstrom Rectangle-Shape Cutter – Precision & Durability Achieve clean, consistent shapes with ease using the Swanstrom rectangle-shape cutter—designed for superior performance and quick release. Manufactured in the USA, these high-quality cutters ensure decades of reliable service.

Product Details:

• Brand: Swanstrom
• Shipping Weight: 6.097 lbs (2.766 kg)
• Country of Origin: United States

Superior Construction & Precision Cutting:

• The top and bottom plates, along with all punches, are made from S7 shock-resistant tool steel, hardened to 55 HRC for exceptional durability.
• Precision-ground punches deliver smooth edges with minimal cleanup.
• Tight tolerances between the punches and the spring-loaded die plate ensure clean cuts and extended tool life.
• The die plate securely clamps metal, preventing distortion while keeping hands safely away.
• Easy-to-use opening and closing mechanism allows for quick material adjustments.

Cutting Capabilities:

• Cuts soft materials up to 16 gauge (1.29 mm) when using a mallet.
• Cuts up to 10 gauge (2.59 mm) when used with a hydraulic press.

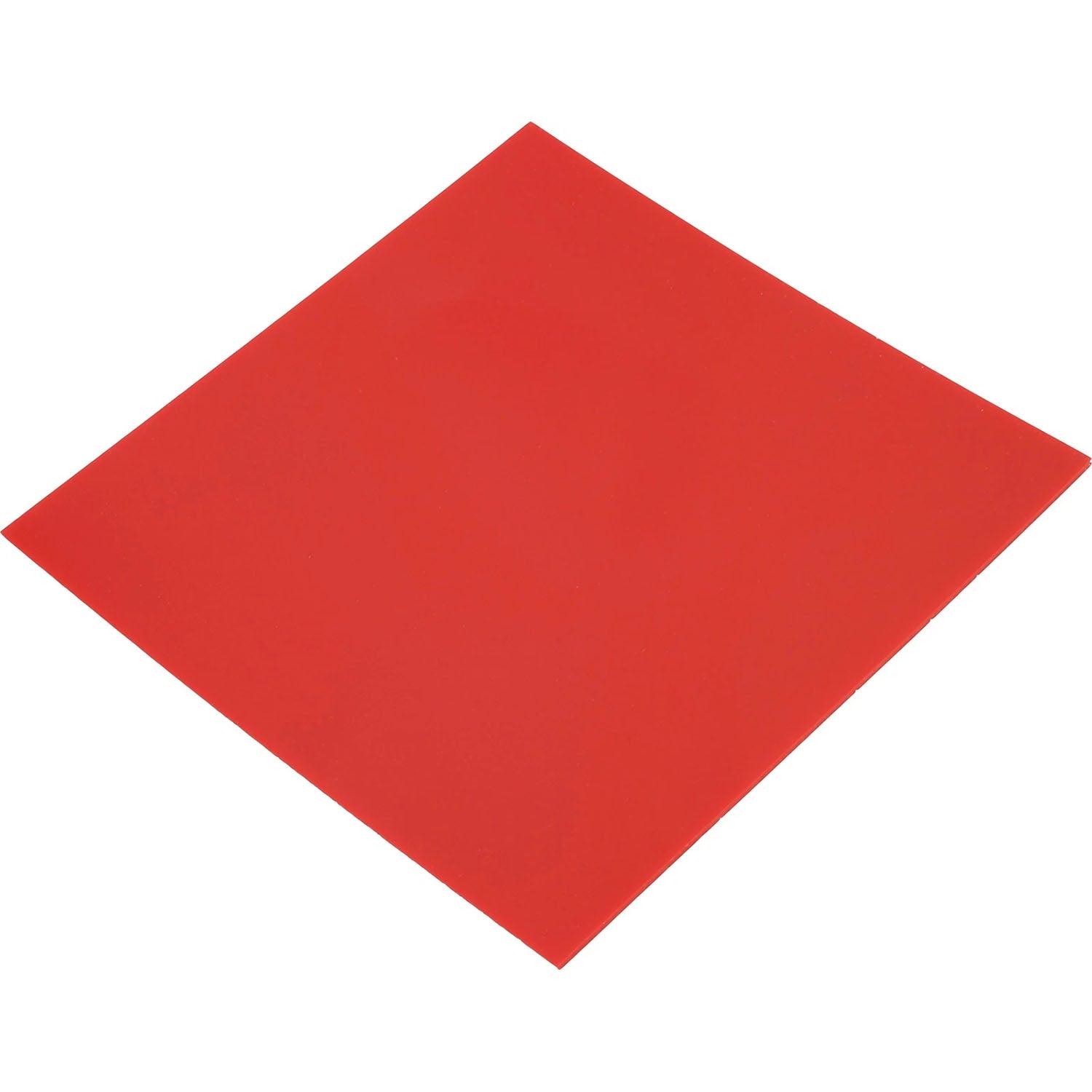

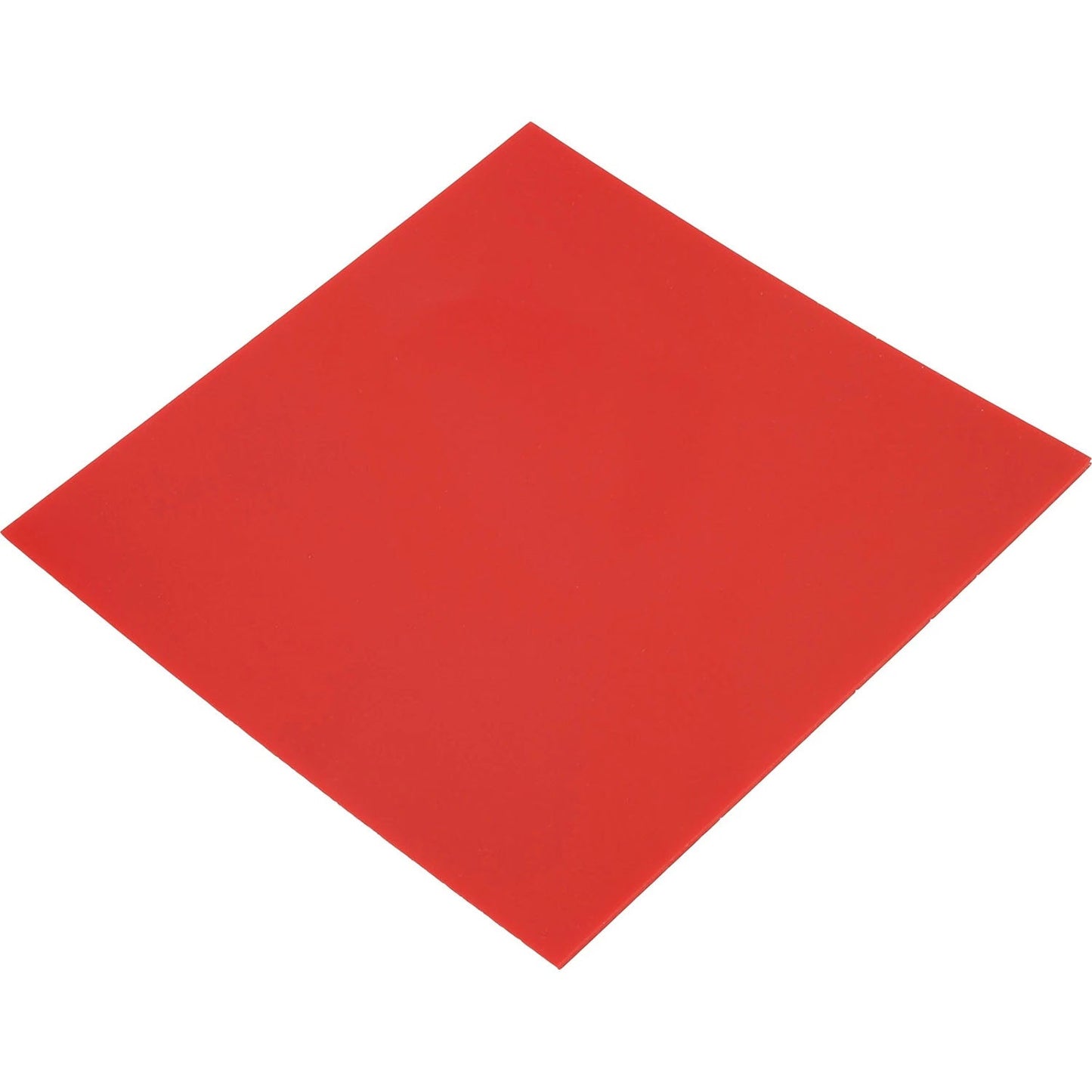

• For optimal performance, use a 1/16" thick, 95-durometer urethane pad (not included) to reduce noise, support cutters, protect surfaces, and ensure crisp cuts.

Features & Maintenance:

• IMPORTANT: Always place a shim of equal thickness opposite the material being cut to keep plates balanced and ensure a perpendicular cut.
• Tool Protection: Use only brass-head mallets when striking punches to prevent surface damage.

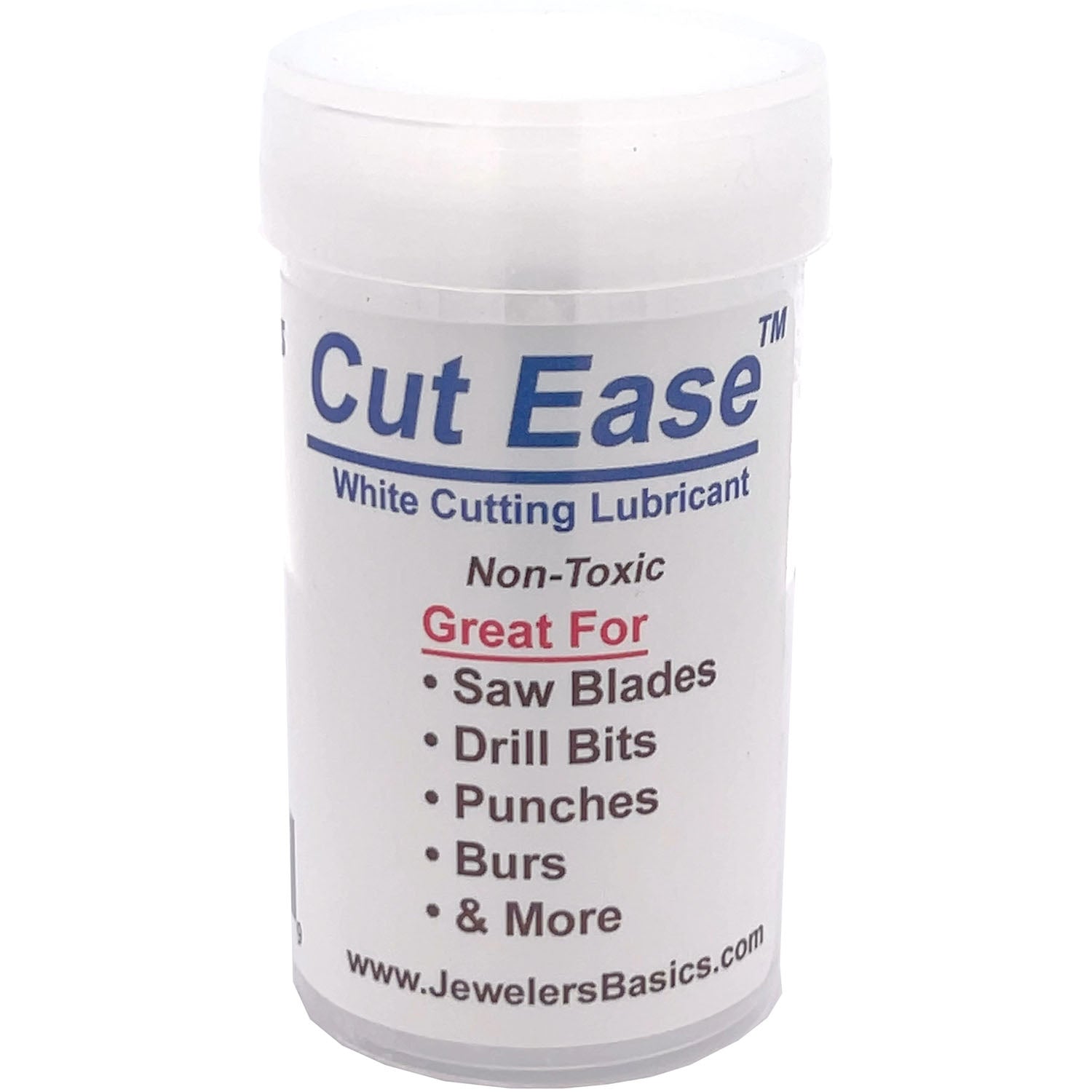

• Long-Lasting Performance: Apply Jeweler's Basics® - Cut Ease to the cutting edges to maintain sharpness and efficiency.

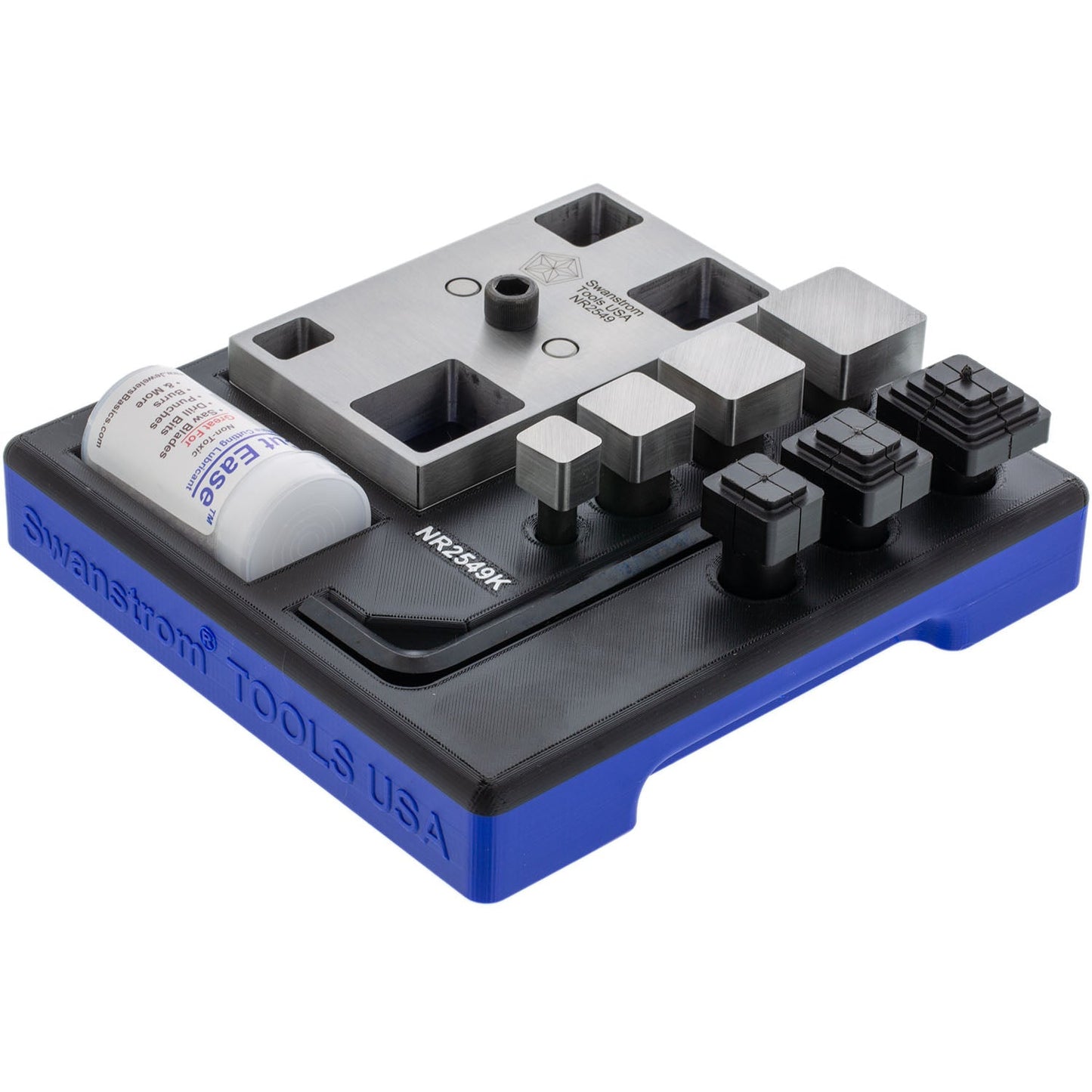

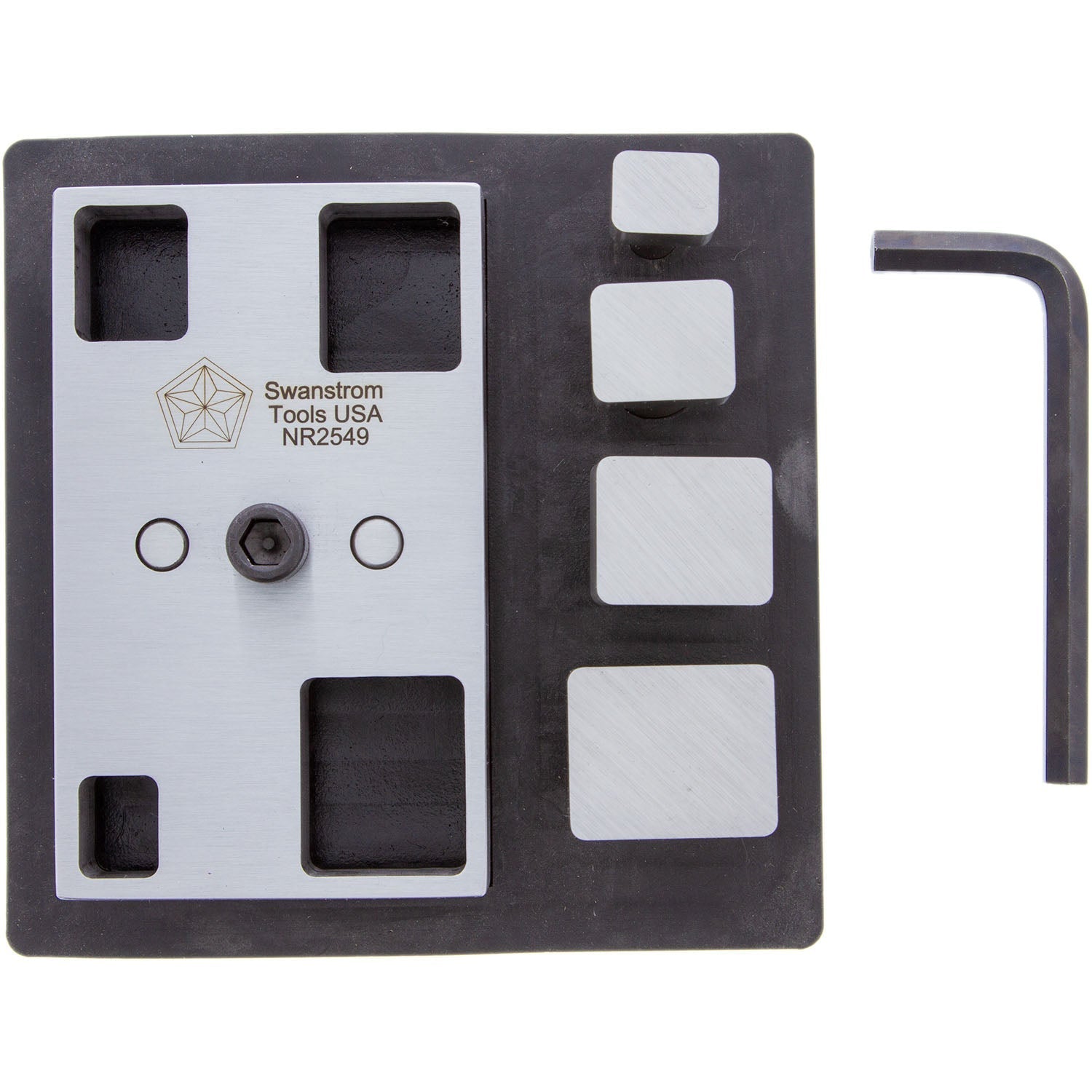

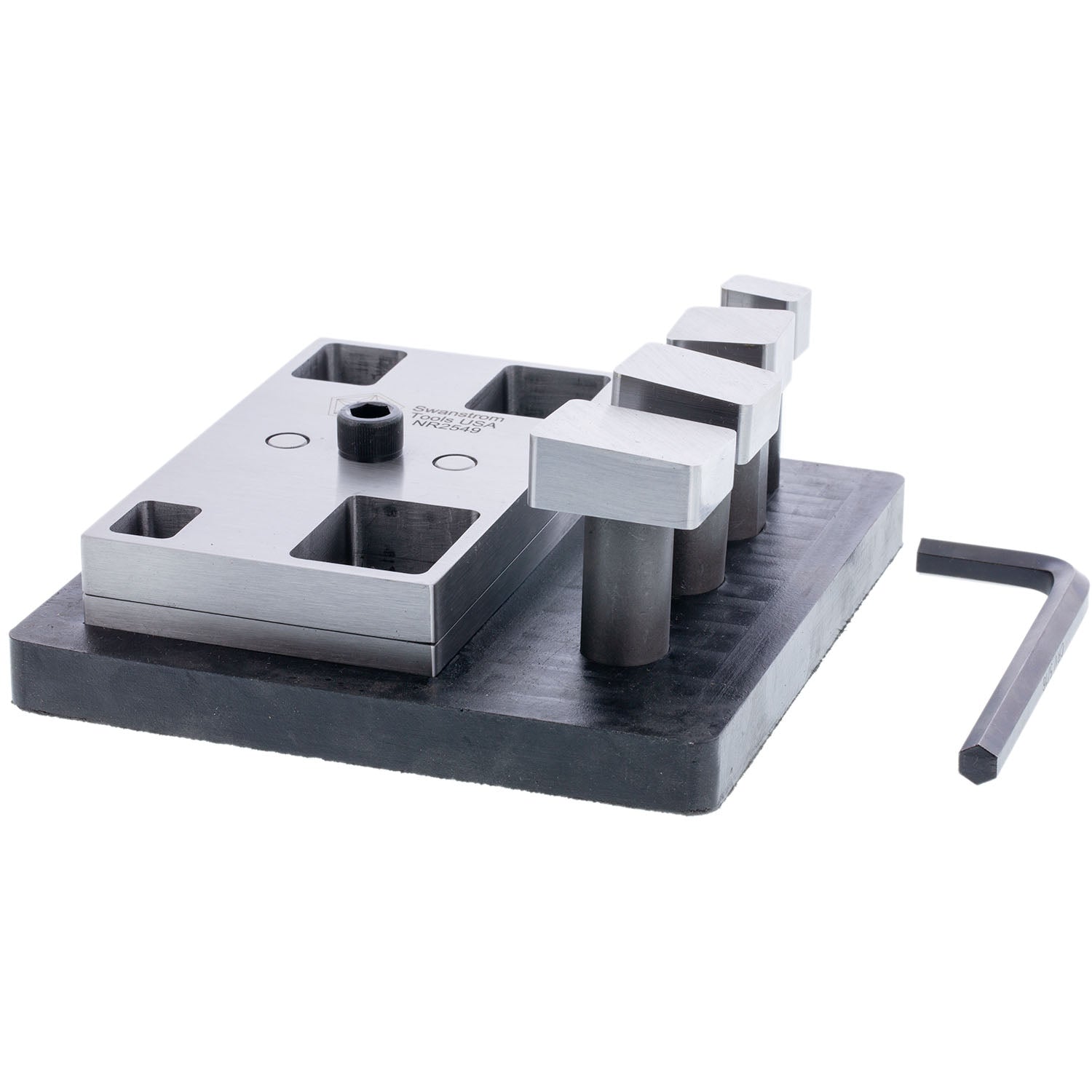

Kit Includes:

• Two-die plates (3" W x 5" D x 1-1/16" H | 76.2 x 127 x 26.99 mm)
• Four punches (each 2" / 50.8 mm tall):
  • 9/16" x 23/32" (14.28 x 18.25 mm)
  • 25/32" x 15/16" (20.25 x 23.81 mm)
  • 31/32" x 1-3/16" (24.6 x 30.16 mm)
  • 1-5/32" x 1-3/8" (29.36 x 34.92 mm)
• One Hex wrench

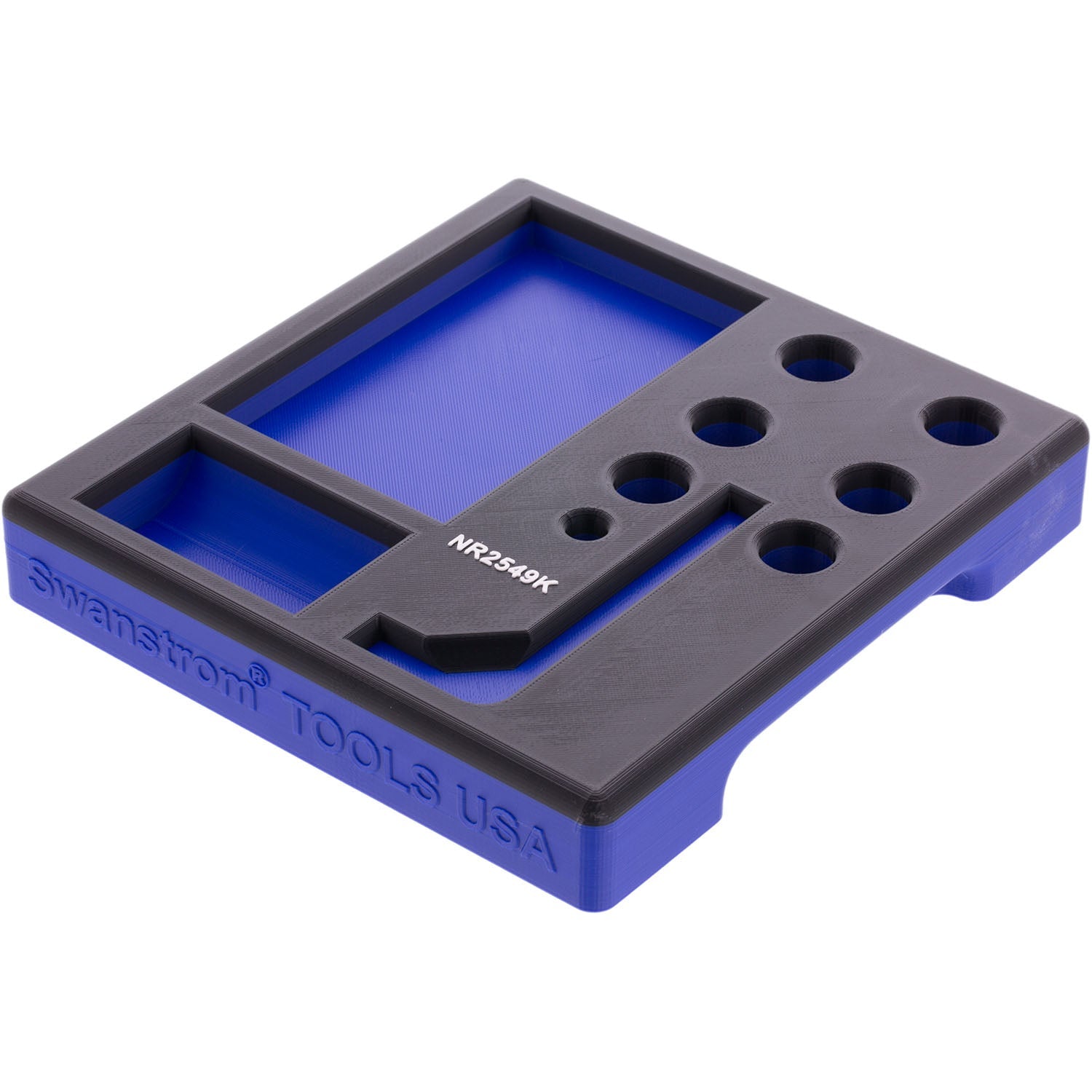

• Durable rubber base (6" x 6" x 1/2" | 152.4 x 152.4 x 12.7 mm), designed for convenient storage of the cutter and dies

Built for precision and durability, the Swanstrom rectangle-shape cutter is the ultimate tool for professionals who demand clean cuts and long-lasting performance.
