Swanstrom - Pliers Set - Link-Forming (NR1000)

The Swanstrom Link Forming Pliers Set provides everything needed to craft a variety of custom jewelry links with precision and ease.

Versatile Link Forming Tools

Swanstrom link forming pliers merge the shaping power of a jig with the flexibility of pliers. Designed with an anti-glare finish, they reduce eye strain and enhance visibility. Use these pliers with ready-made rings or ones you've handcrafted (excluding cast rings). Simply position the ring around the pegs and squeeze the handles to reshape it.

Key Features:

• Adjustable Lap Joint: A screw allows for precise tension adjustments.
• Tempered Coil Spring: Ensures durability and returns to its original shape after compression.
• Jaw Stop: Delivers even, repeatable pressure without overextending the tool.
• Soft-Touch™ Sure-Grip Handles: Ergonomically designed for maximum comfort during extended use. Latex-free.

Jigs for Custom Shapes:

• Steel Jig: Pre-drilled with 48 holes (1/8"), allowing nearly limitless link designs. The largest pegs (1/2" diameter) enable links up to ½”W x 2-5/8”L using the outermost holes.
• Delrin® Jig: Undrilled for complete customization. Drill holes in your desired pattern to create unique link shapes.

Premium Swanstrom Quality:

Swanstrom Tools are crafted from high-chromium, high-carbon alloy steel, hardened to 65 HRC. Advanced heat treatment and computer-controlled induction edge-hardening maximize tool life.

Attributes:

• Jaw Style: Specialty
• Brand: Swanstrom
• Shipping Weight: 19.973 ounces (566.23g)
• Country of Origin: United States
• U.S. Patent: 8281637

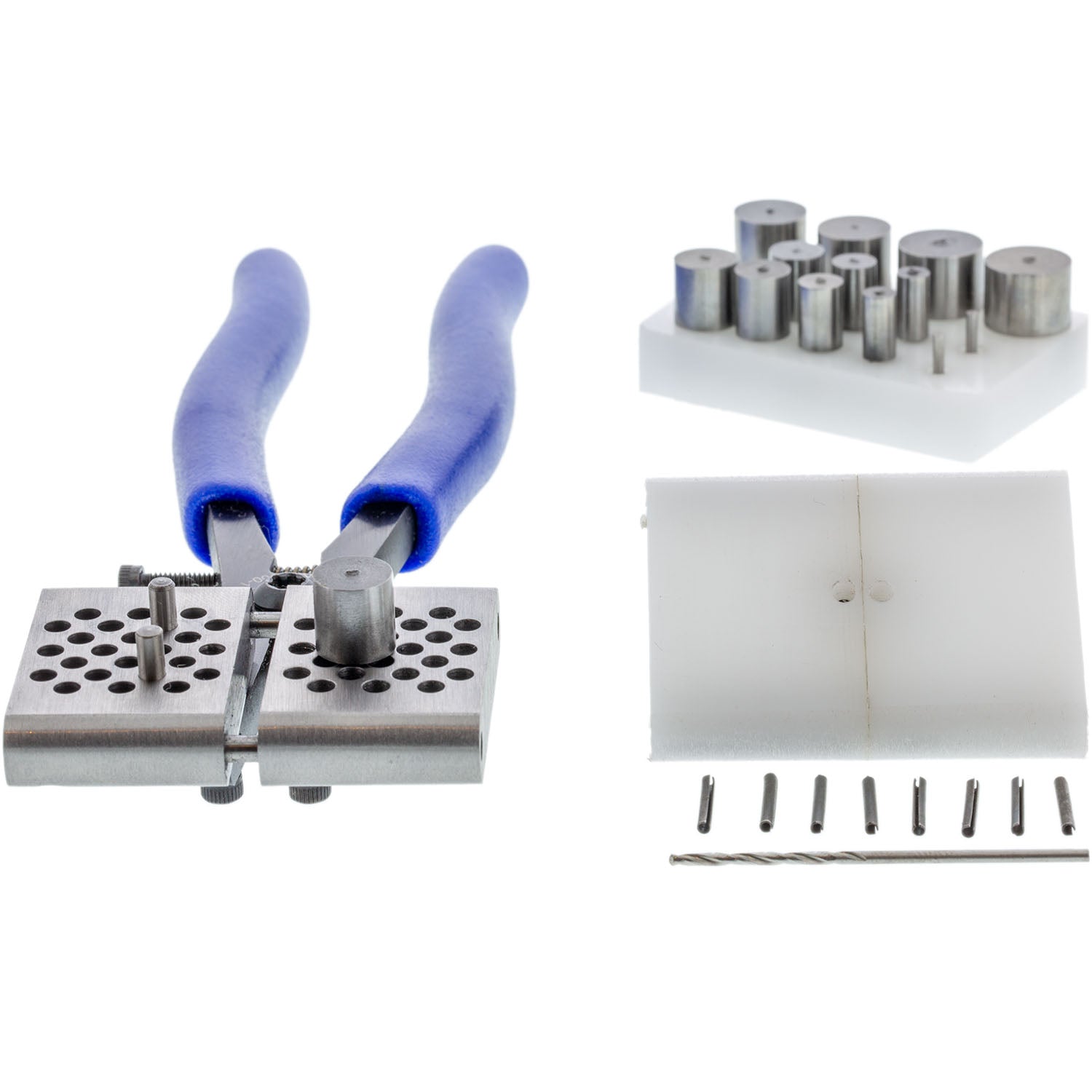

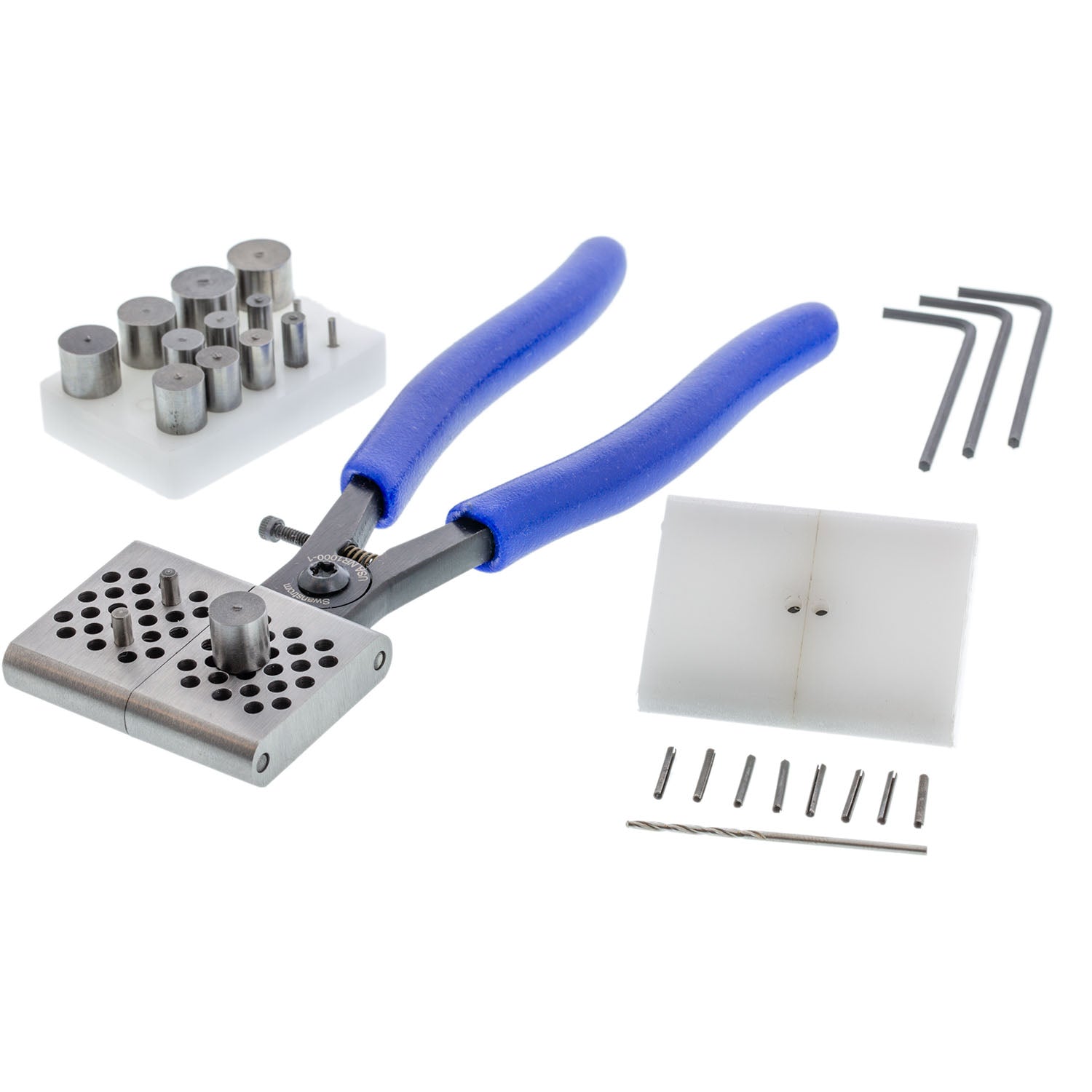

Kit Includes:

• Swanstrom link-forming pliers
• 16 Round Steel Pegs (two of each size):
  • 1/16” (NR100016)
  • 1/8” (NR100018)
  • 3/16” (NR100036)
  • 1/4” (NR100014)
  • 5/16” (NR100056)
  • 3/8” (NR100038)
  • 7/16” (NR100076)
  • 1/2” (NR100012)
• Delrin® jig with eight 1/16” steel pegs
• Steel jig
• 1/16” drill bit
• Hex key

Note: This tool is not compatible with cast rings.
