Swanstrom - Oval Shape Disc Cutter - Large Sizes

Swanstrom Large Oval-Shape Cutter – Precision & Durability Achieve clean, consistent cuts with the Swanstrom large oval-shape cutter, engineered for superior performance and effortless shape release. Manufactured in the USA, this high-quality tool delivers decades of reliable service.

Premium Construction for Precision Cutting

• The top and bottom plates, along with all punches, are crafted from S7 shock-resistant tool steel, hardened to 55 HRC for long-lasting durability.
• Precision-ground punches ensure smooth edges with minimal cleanup.
• Tight tolerances between the punches and the spring-loaded die plate guarantee precise cuts while extending the cutter’s service life.
• The die plate securely clamps metal, preventing distortion and keeping hands safely away.
• Easy-to-use opening and closing mechanism allows for quick material adjustments.

Cutting Capabilities

• Cuts soft materials up to 16 gauge (1.29 mm) when used with a mallet.
• Cuts up to 10 gauge (2.59 mm) when used with a hydraulic press.

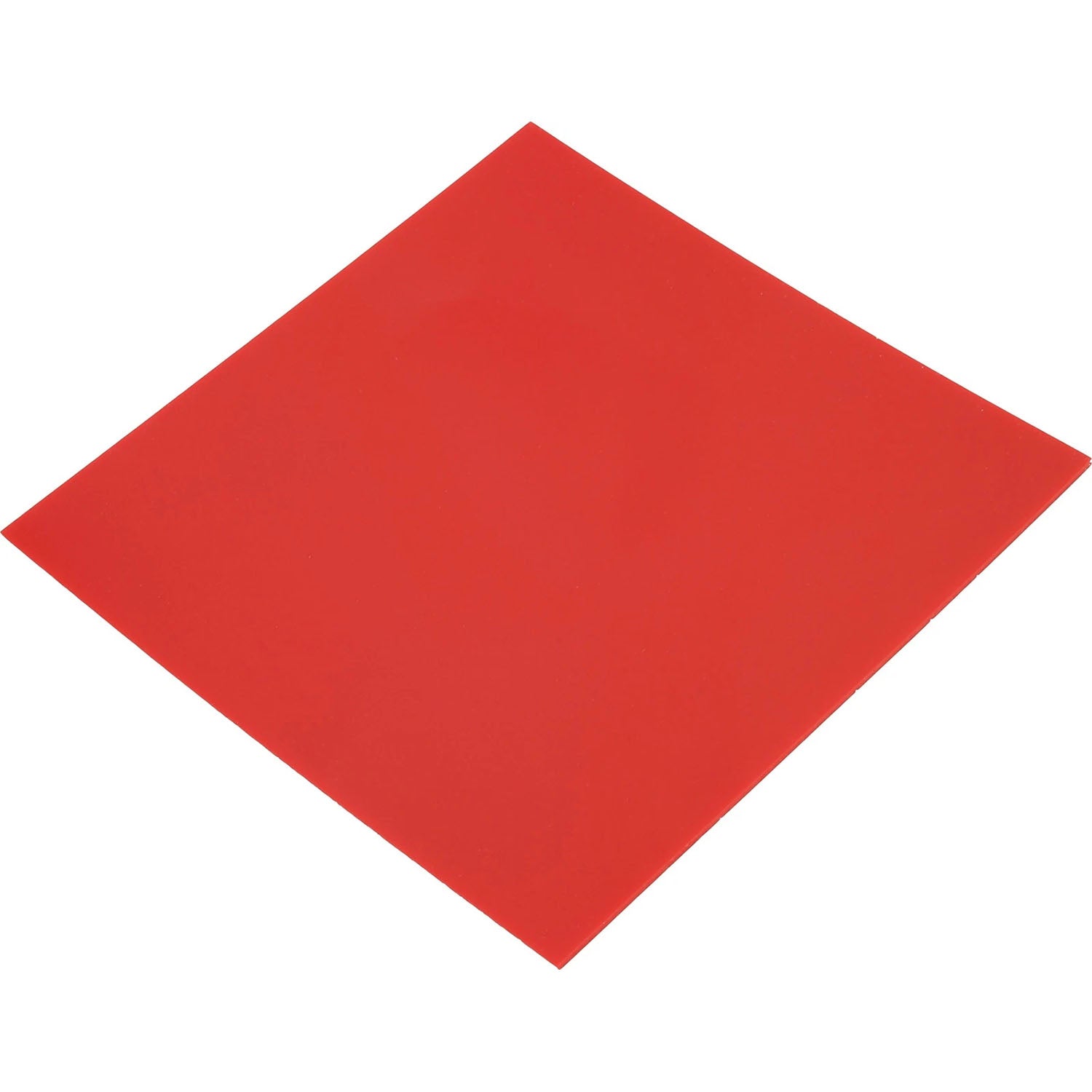

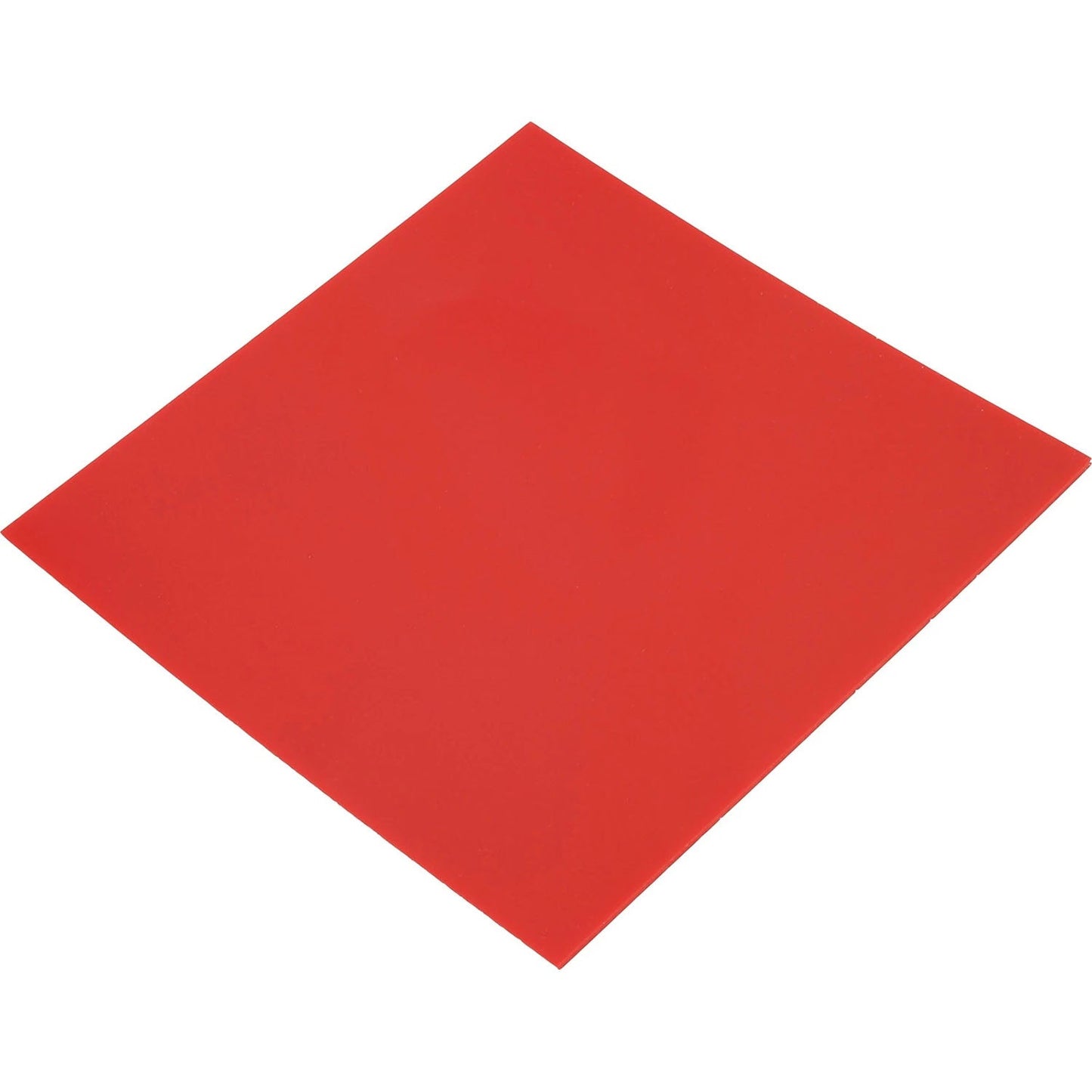

• For best results, place a 1/16" thick, 95-durometer urethane pad (not included) under the cutter to reduce noise, support the tool, protect surfaces, and ensure clean cuts.

Product Details

• Brand: Swanstrom
• Shipping Weight: 5.24 lbs (2.377 kg)
• Country of Origin: United States

Features & Maintenance

• IMPORTANT: Always place a shim of equal thickness opposite the material being cut to maintain balance and ensure a perpendicular cut.
• Tool Protection: Use only brass-head mallets when striking punches to prevent surface damage.

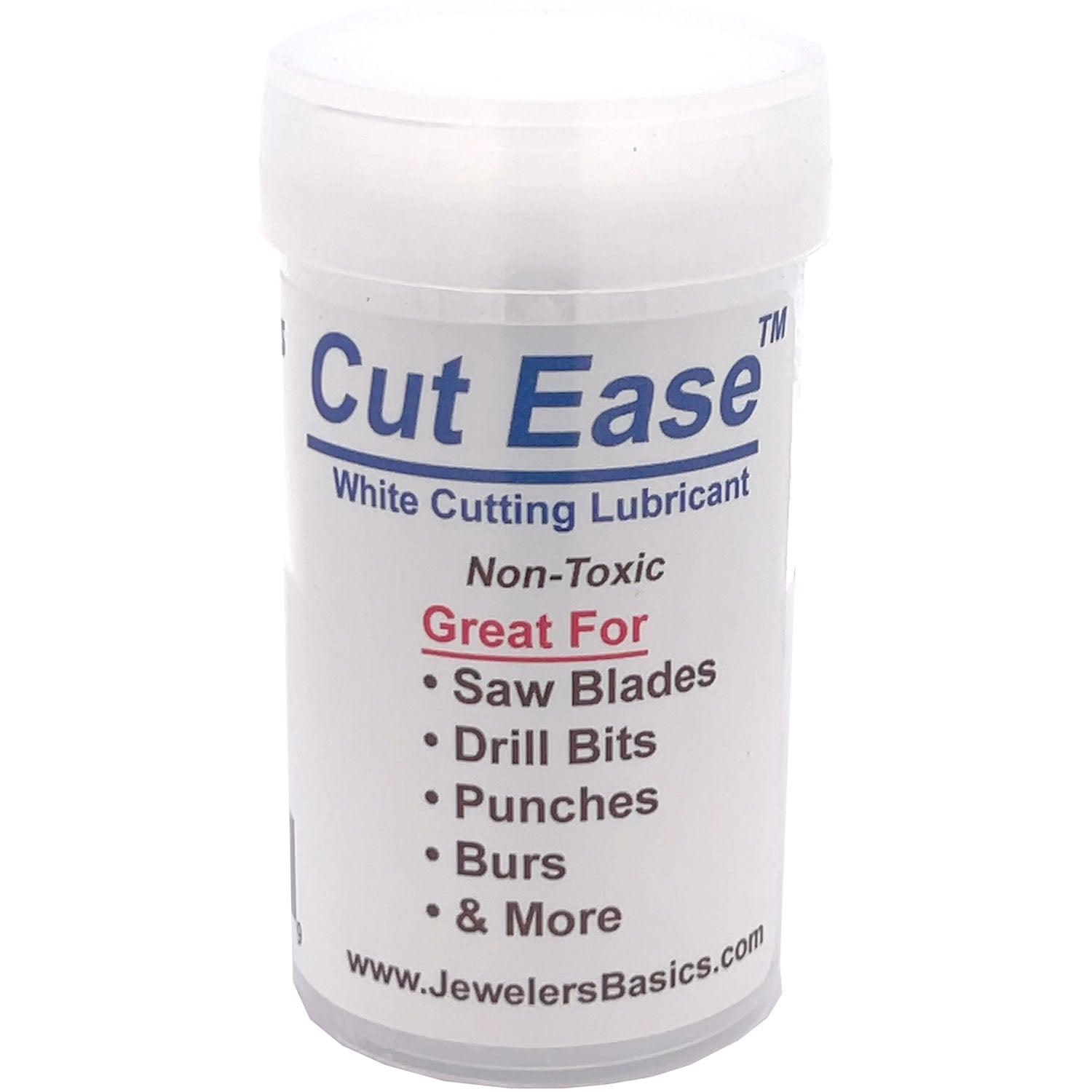

• Long-Lasting Performance: Apply Jeweler's Basics® - Cut Ease to cutting edges for smooth, efficient operation over time.

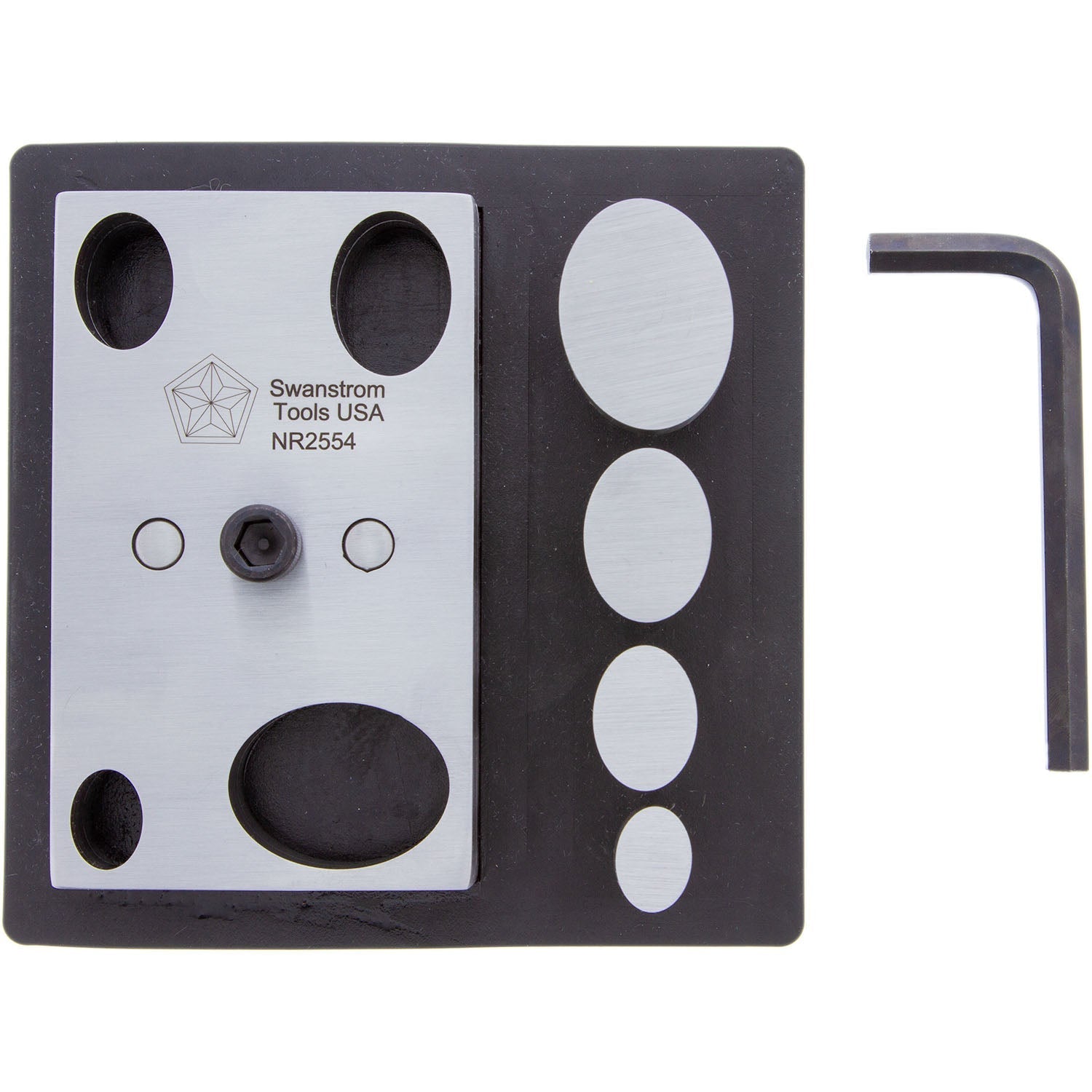

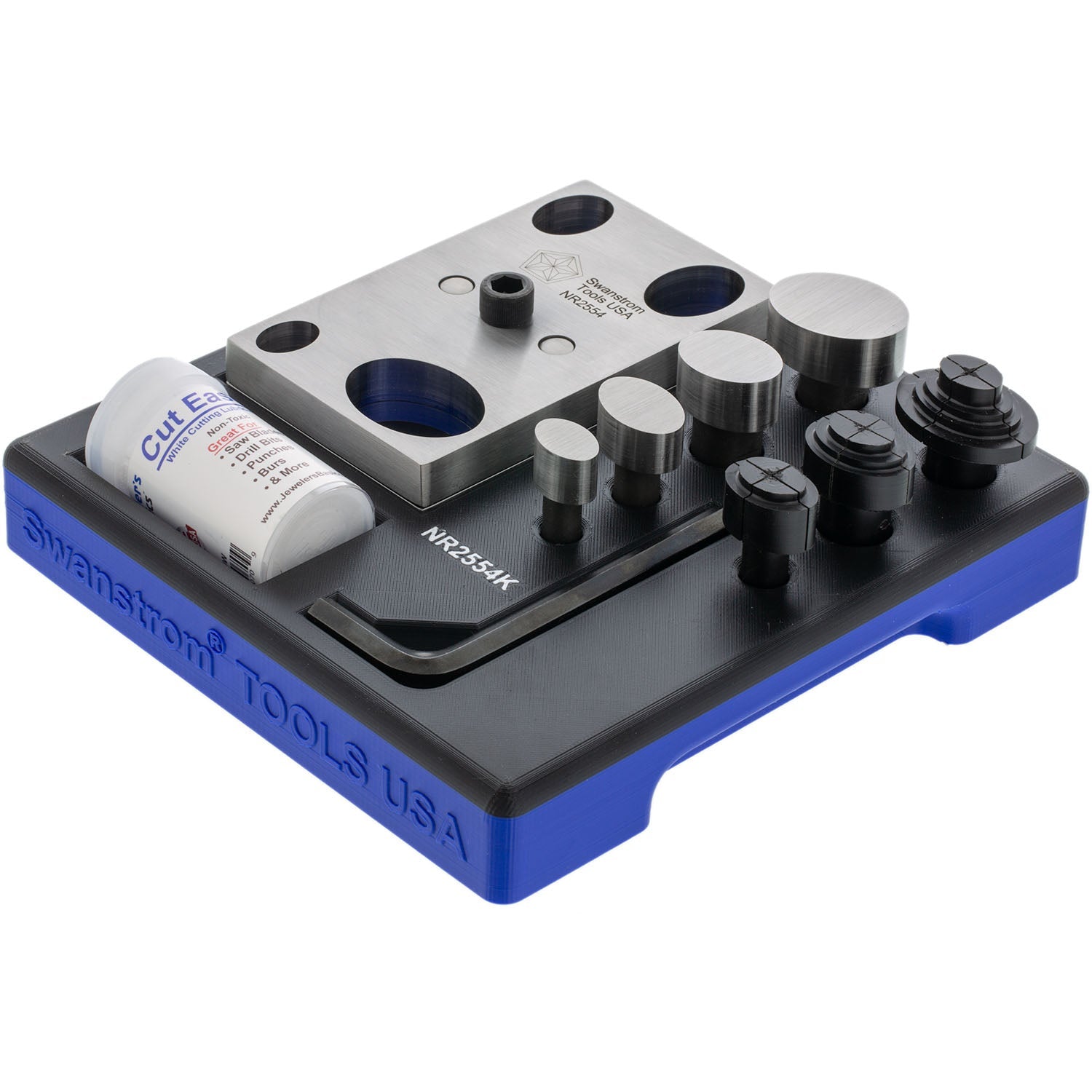

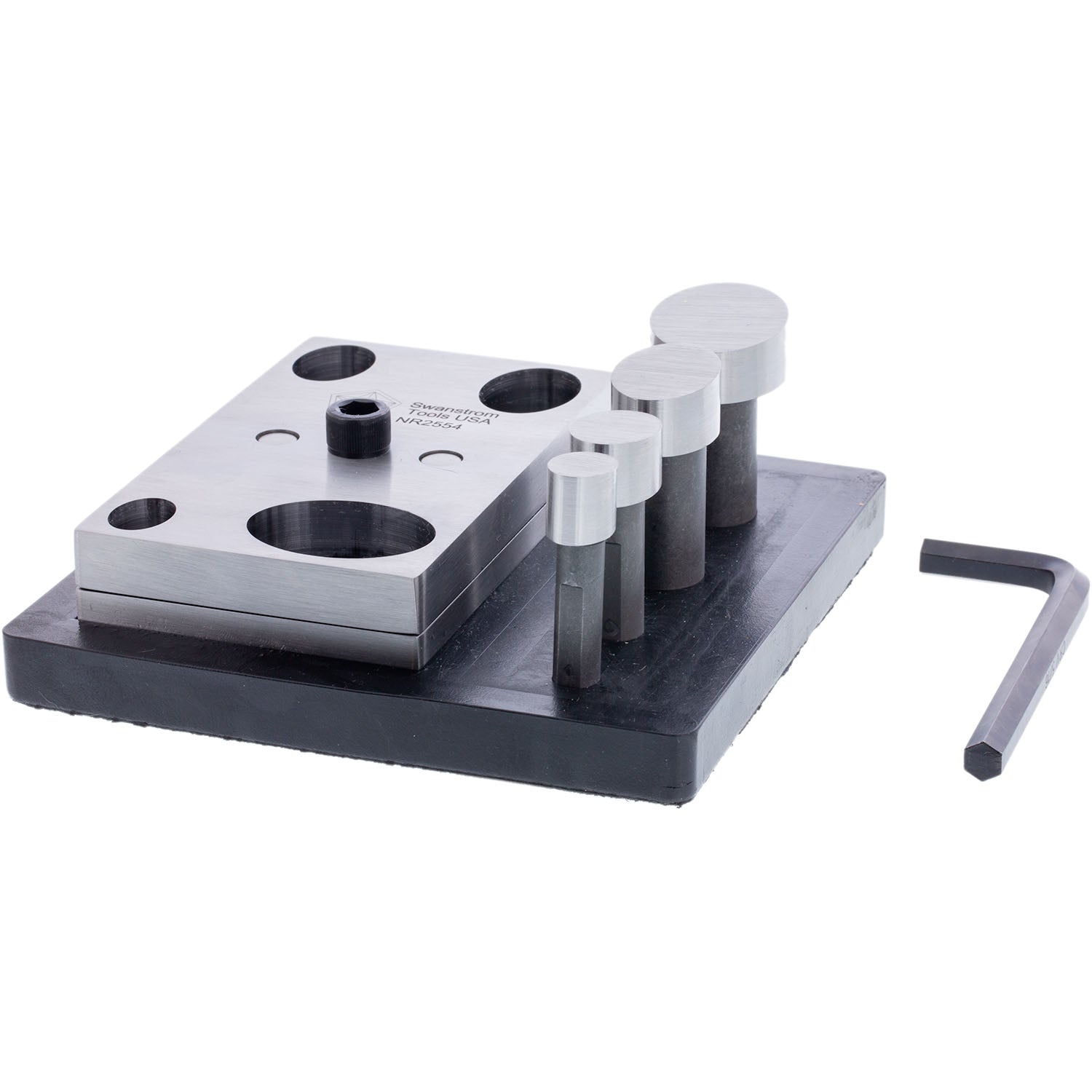

Kit Includes

• Two die plates: 3" W x 5" D x 1-1/16" H (76.2 x 127 x 26.99 mm)
• Four punches (each 2" / 50.8 mm tall):
  • 1/2" x 23/32" (12.7 x 18.25 mm)
  • 23/32" x 31/32" (18.25 x 24.6 mm)
  • 7/8" x 1-3/16" (22.23 x 30.16 mm)
  • 1-3/16" x 1-9/16" (30.16 x 39.68 mm)
• One Hex wrench

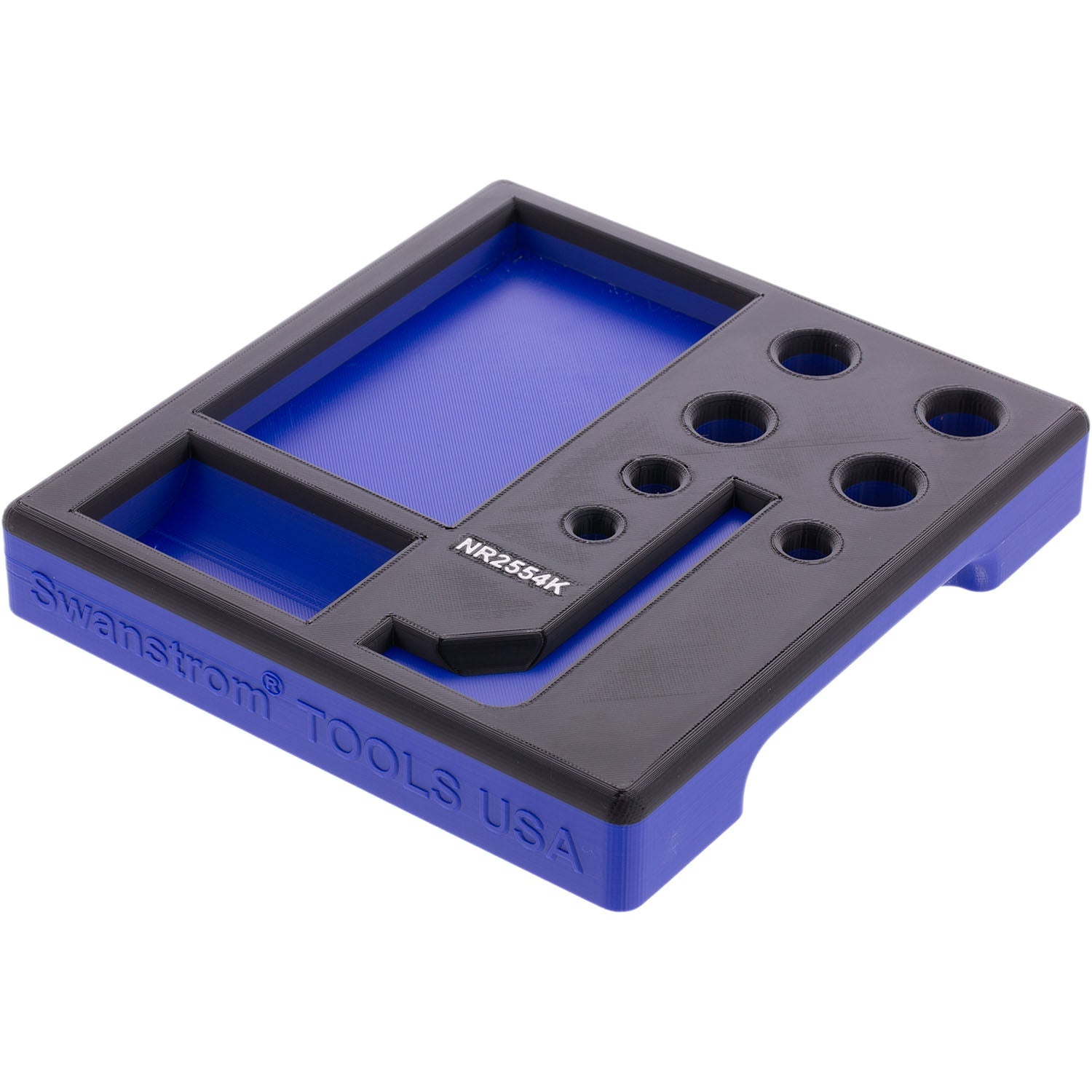

• Durable rubber base: 6" x 6" x 1/2" (152.4 x 152.4 x 12.7 mm) for secure storage of cutter and dies

Designed for professionals who demand precision and longevity, the Swanstrom large oval-shape cutter ensures clean, accurate cuts every time.
